Name：Song Chuan Relay

Model：MV013

Description

• Medium voltage DC load control
• High-performance high-power relay
• Comply with RoHS 2011/65/EU directive
• Applicable to xEV vehicles

PDF

Name：Current Sensor

Model：JCE5-10mA...5A3125

Description

• High accuracy
• Good linearity
• High bandwidth
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：MV021

Description

• Medium voltage DC load control
• High-performance high-power relay
• Comply with RoHS 2011/65/EU directive
• Applicable to xEV vehicles

PDF

Name：Current Sensor

Model：JCE6-10mA...2A3125

Description

• High accuracy
• Good linearity
• High bandwidth
• No insertion loss
• Strong anti-interference ability

PDF

Name：Current Sensor

Model：JCE-ES-10mA...500MA3125

Description

• High accuracy
• Good linearity
• High bandwidth
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：MV023

Description

• Medium voltage DC load control
• High-performance high-power relay
• Comply with RoHS 2011/65/EU directive
• Applicable to xEV vehicles

PDF

Name：Current Sensor

Model：JTSR0.1...0.8-P

Description

• High accuracy
• Good linearity
• High bandwidth
• No insertion loss
• Strong anti-interference ability

PDF

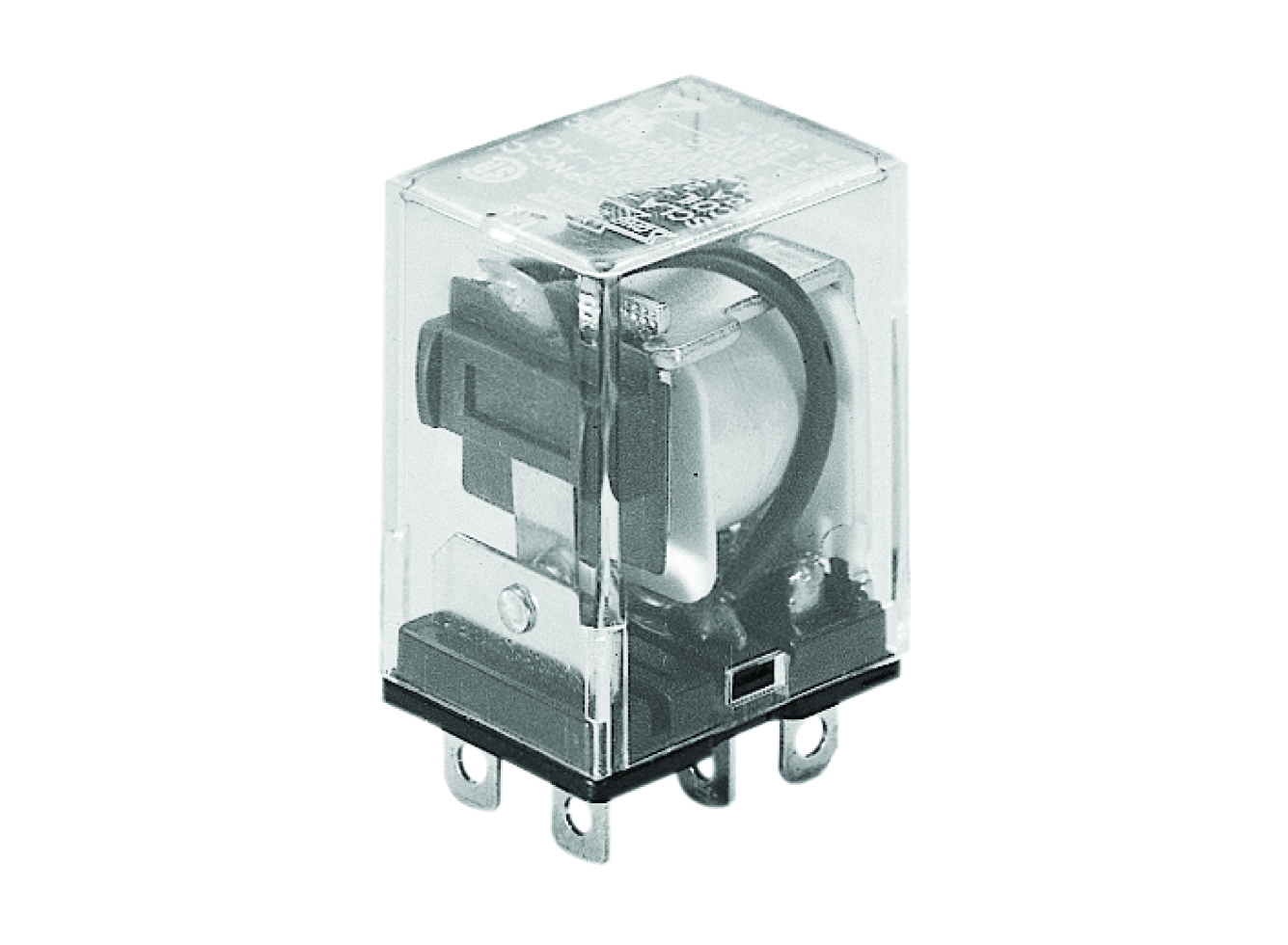

Name：Song Chuan Relay

Model：SCL

Description

• 10A universal power relay
• Contact load can reach 12A/250AC (DPNO)
• Closed type and dustproof cover type, PCB lead out or quick-connect lead out
• Provide special specification of contact 1.9mm
• With indicator light, diode, gold-plated contact, flange mounting cover
• Comply with RoHS 2011/65/EU directive

PDF

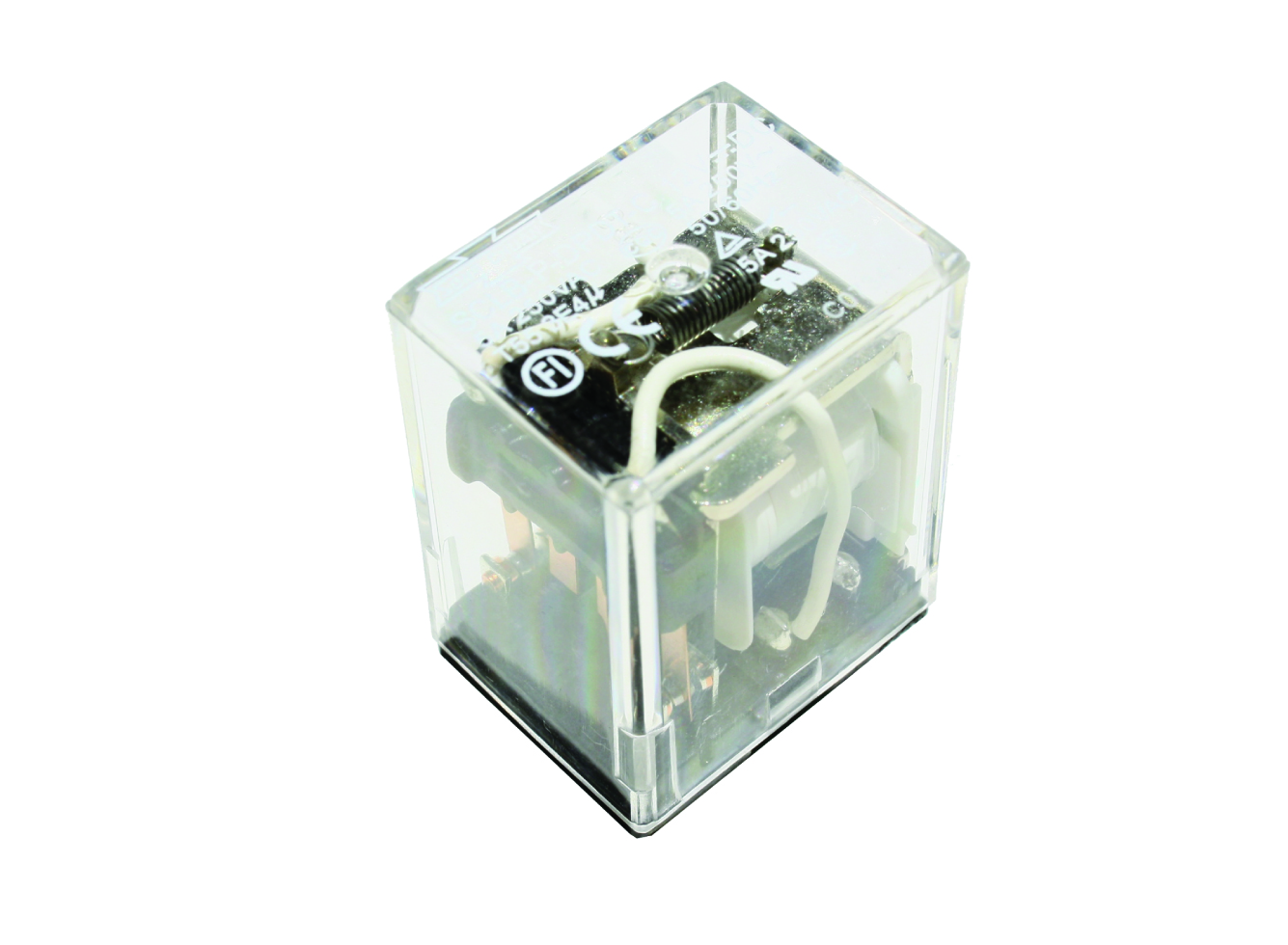

Name：Song Chuan Relay

Model：SCLA

Description

• 15A universal relay with UL/UL/CSA/TUV certification
• AC or DC coil with or without indicator light/bolt function
• Closed type and washable type without breather
• Top flange mounting cover, PCB and/or solder/quick-connect outlet
• Contact load can reach 15A/250VAC (SPNO)
• Comply with RoHS 2011/65/EU directive

PDF

Name：Current Sensor

Model：JCE-10...0.1A-EG

Description

• High accuracy
• Good linearity
• High bandwidth
• No insertion loss
• Strong anti-interference ability

PDF

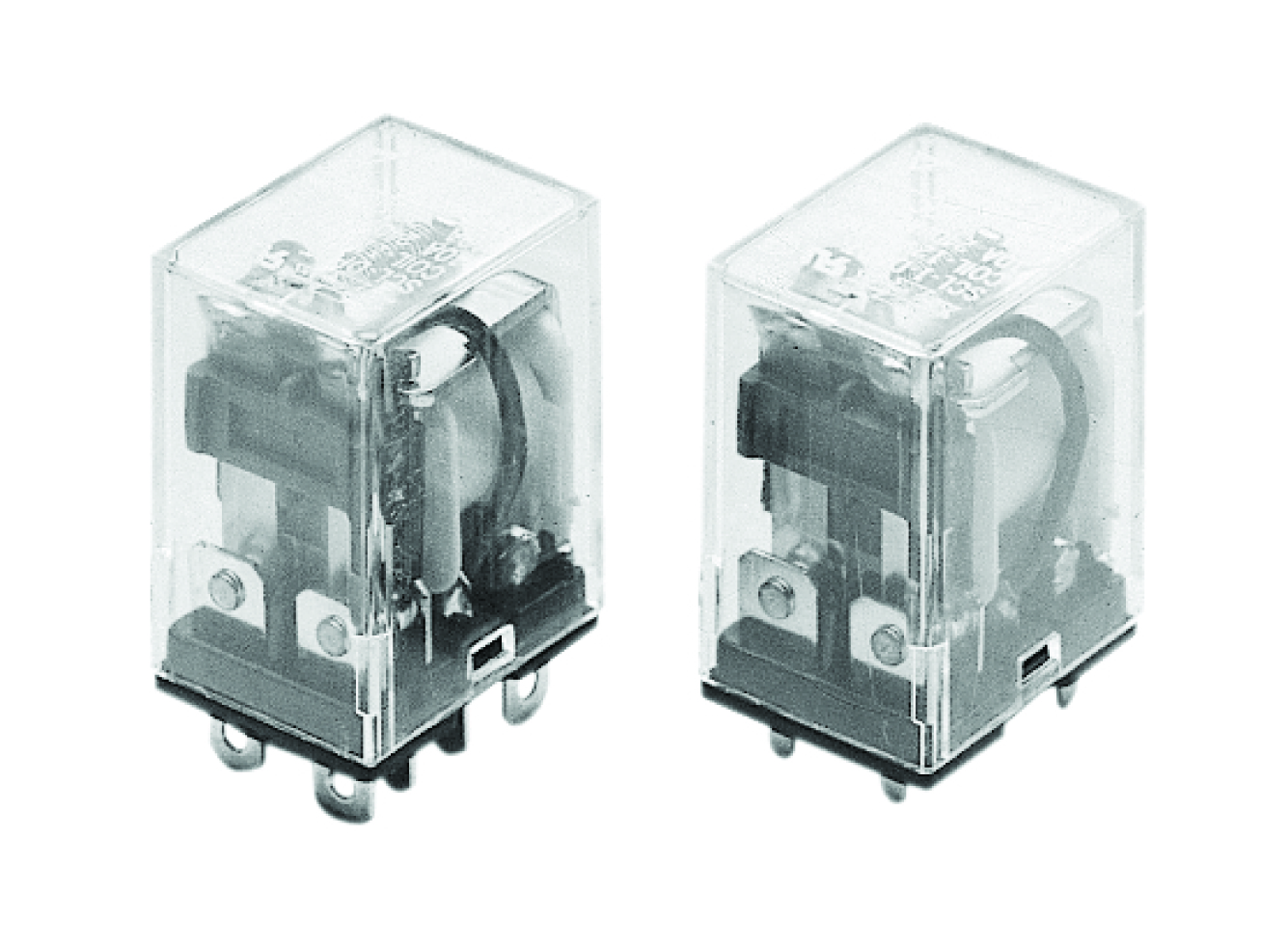

Name：Song Chuan Relay

Model：SCLD、SCLB

Description

• 5A universal power relay
• The contact forms are DPDT and 4PDT
• Provide AC and DC control coils
• Provide airtight or general dust-proof cover, etc
• With indicator light, diode, gold-plated contact and flange mounting cover
• Comply with RoHS 2011/65/EU directive

PDF

Name：Current Sensor

Model：JCE54-20...500A2143

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF
