Name：Song Chuan Relay

Model：409

Description

• High power 200A automobile relay
• Contact type: one group of normally open type
• Up to 200A resistive load, 50K times, 23 ℃
• Can be matched with diodes or resistors
• Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives

PDF

Name：Connector

Model：CHD14062XXXX 2 PIN STRAIGHT PLUG, CODING, HVIL

Description

• Product Type: Power Connector
• Market: Electric Vehicle
• Rated Voltage: 1500V
• Rated Current: 500A@150MM2 SHIELD CABLE
• Rated Current: 430A@120MM2 SHIELD CABLE
• Rated Current: 350A@ 95MM2 SHIELD CABLE

PDF

Name：Current Sensor

Model：JCE50...600-ASS-0.5

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：507

Description

• Large power small PCB relay, providing DC/AC control coil
• 17A/277VAC (SPDT), height 15.7mm, Class F insulation
• Provide material of CTI 250 or products conforming to IEC 60335-1
• It can provide products specially used for high impact current occasions (507IR)
• UL/CUL and VDE are provided, in line with RoHS 2011/65/EU
• Halogen-free and explosion-proof specifications available

PDF

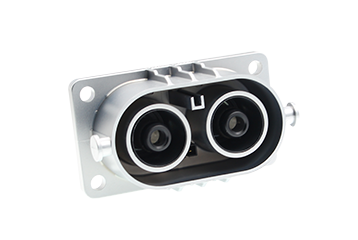

Name：Connector

Model：CHD14022XX01, 2PIN RECEPTACLE, CODING, HVIL

Description

• Product Type: Power Connector
• Market: Electric Vehicle
• Rated Voltage: 1500V
• Rated Current: 500A@150MM2 SHIELD CABLE
• Rated Current: 430A@120MM2 SHIELD CABLE
• Rated Current: 350A@ 95MM2 SHIELD CABLE

PDF

Name：Current Sensor

Model：JCE50...600-ATF

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：507HT

Description

• Low height 15.7mm PCB relay
• High power 17A/277VAC
• Products that can be used in 105 ℃ high temperature environment
• Anti-flux type and airtight washable type
• Provide material of CTI 250 or products conforming to IEC 60335-1
• Comply with RoHS 2011/65/EU directive

PDF

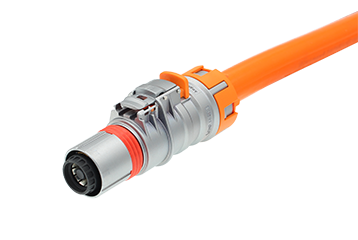

Name：Connector

Model： CHD14031XXXX STRAIGHT PLUG, CODING, HVIL

Description

• Product Type: Power Connector
• Market: Electric Vehicle
• Rated Voltage: 1500V
• Rated Current: 500A@150MM2 SHIELD CABLE
• Rated Current: 430A@120MM2 SHIELD CABLE
• Rated Current: 350A@ 95MM2 SHIELD CABLE

PDF

Name：Current Sensor

Model：JCE100...600-ES

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：510

Description

• High power 54A/277VAC power relay
• High-power 54A/277VAC power relay 1A contact, two groups of dynamic closing, increased contact spacing of 2.1mm, 3.0mm
• Conform to European photovoltaic standard IEC62109-1
• The coil holding voltage can be reduced to 50~55% V of the rated voltage of the coil
• High-performance power relay can be used in photovoltaic system
• Comply with RoHS 2011/65/EU direvtive

PDF

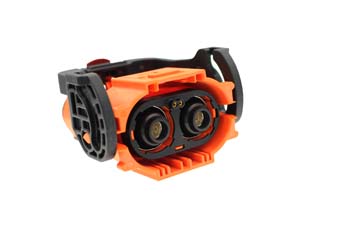

Name：Connector

Model： HVSL800062A025 PLUG, ALTERNATE POSITION A/B/C

Description

• Product Type: Power Connector
• Market: Electric Vehicle
• Connection: Crimp
• IP Rating: IP67 IP6K9K
• Voltage: 1000V
• Rated Current: 120 A

PDF

Name：Current Sensor

Model：JCE100...600-EKS

Description

• Easy installation
• Small size, space saving
• No insertion loss
• No insertion loss

PDF
