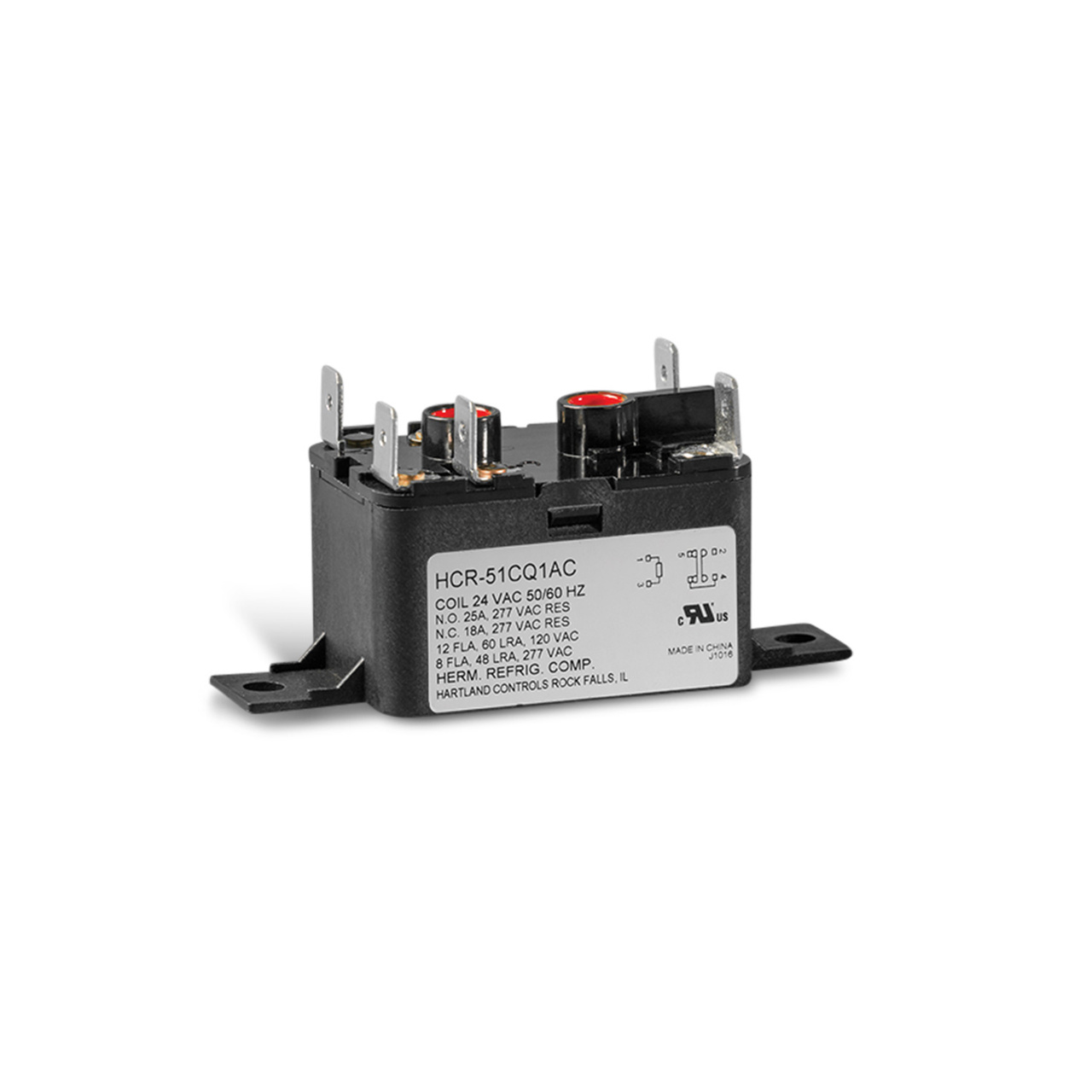

Name：AC contactor

Model：HCR-5

Description

• SPNO,SPNC,SPDT,1NO&1NC
• Class B insulation
• . 250 '' quick-connect terminal
• UL508 certificate number：E227250 Class NLDX2，NLDX8

PDF

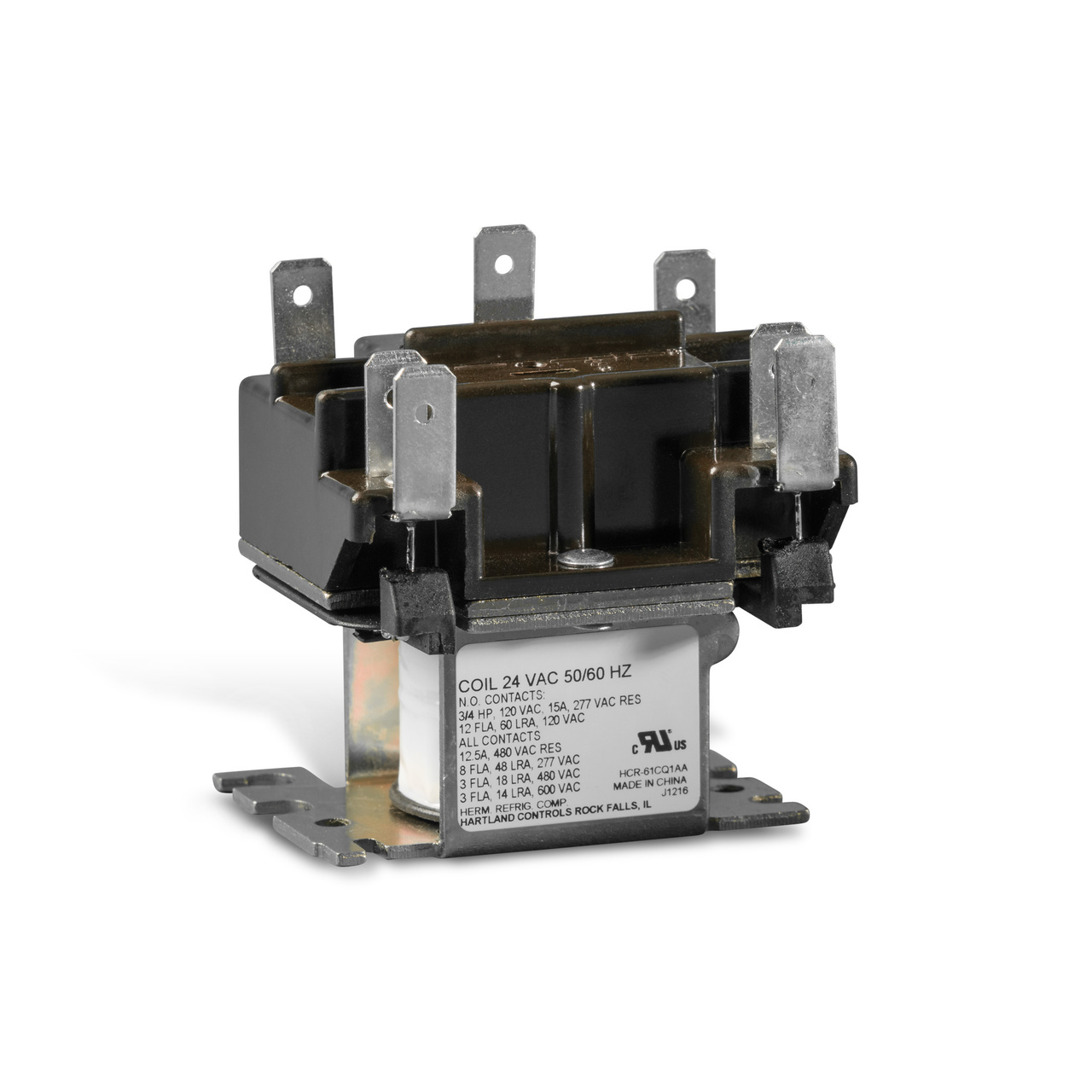

Name：AC contactor

Model：HCR-6

Description

• SPNOˈSPDT,DPNO&DPDT
• Class B insulation
• . 250 '' quick-connect terminal
• UL508 certificate number：E227250 Class NLDX2，NLDX8

PDF

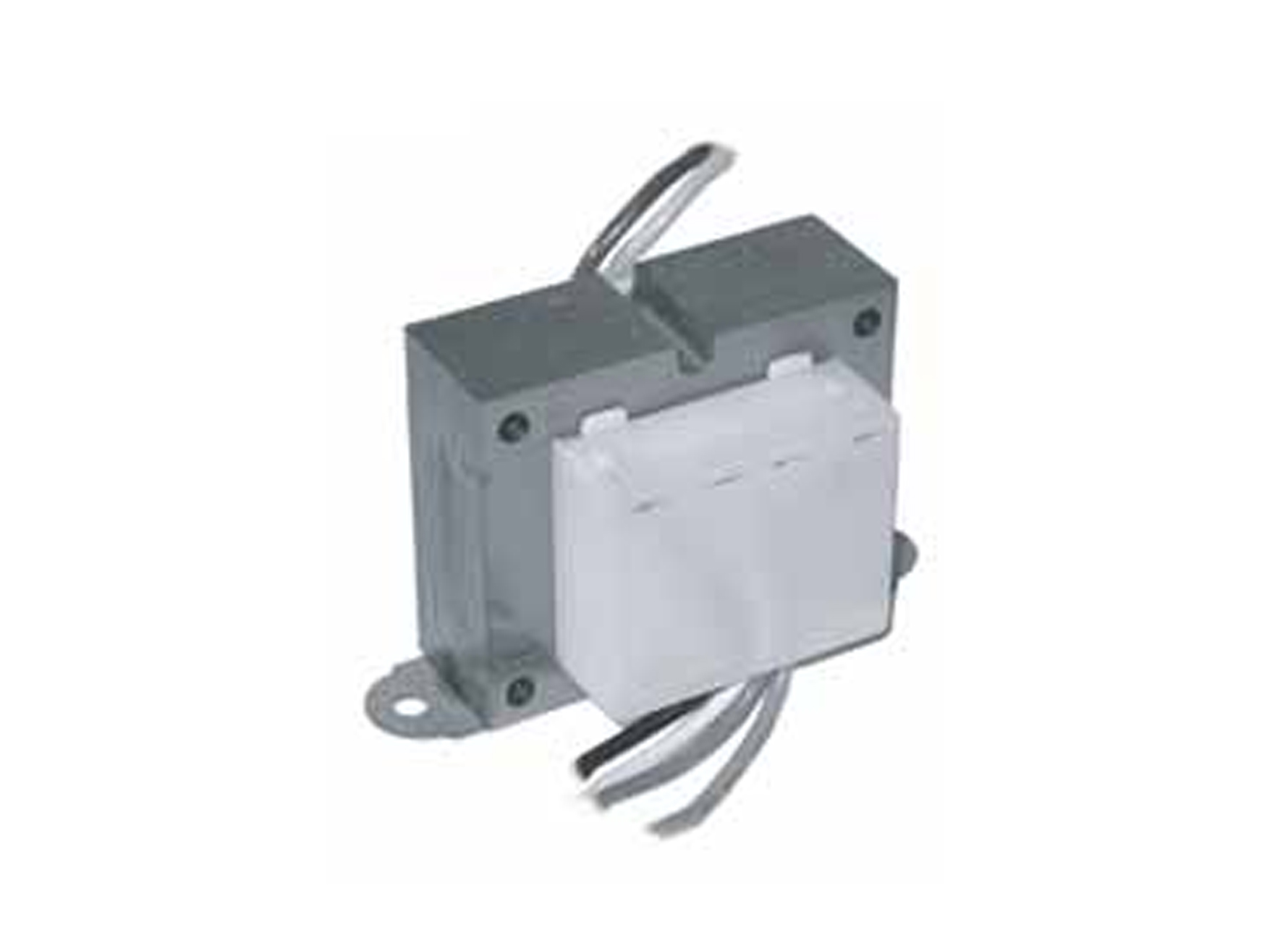

Name：AC contactor

Model：HCT succession

Description

• UL/UL certification, certification number: E223730, class number: XOKV2
• Self-limiting type
• No fuse at the secondary pole
• Please consult Hartland Controls for special requirements

PDF

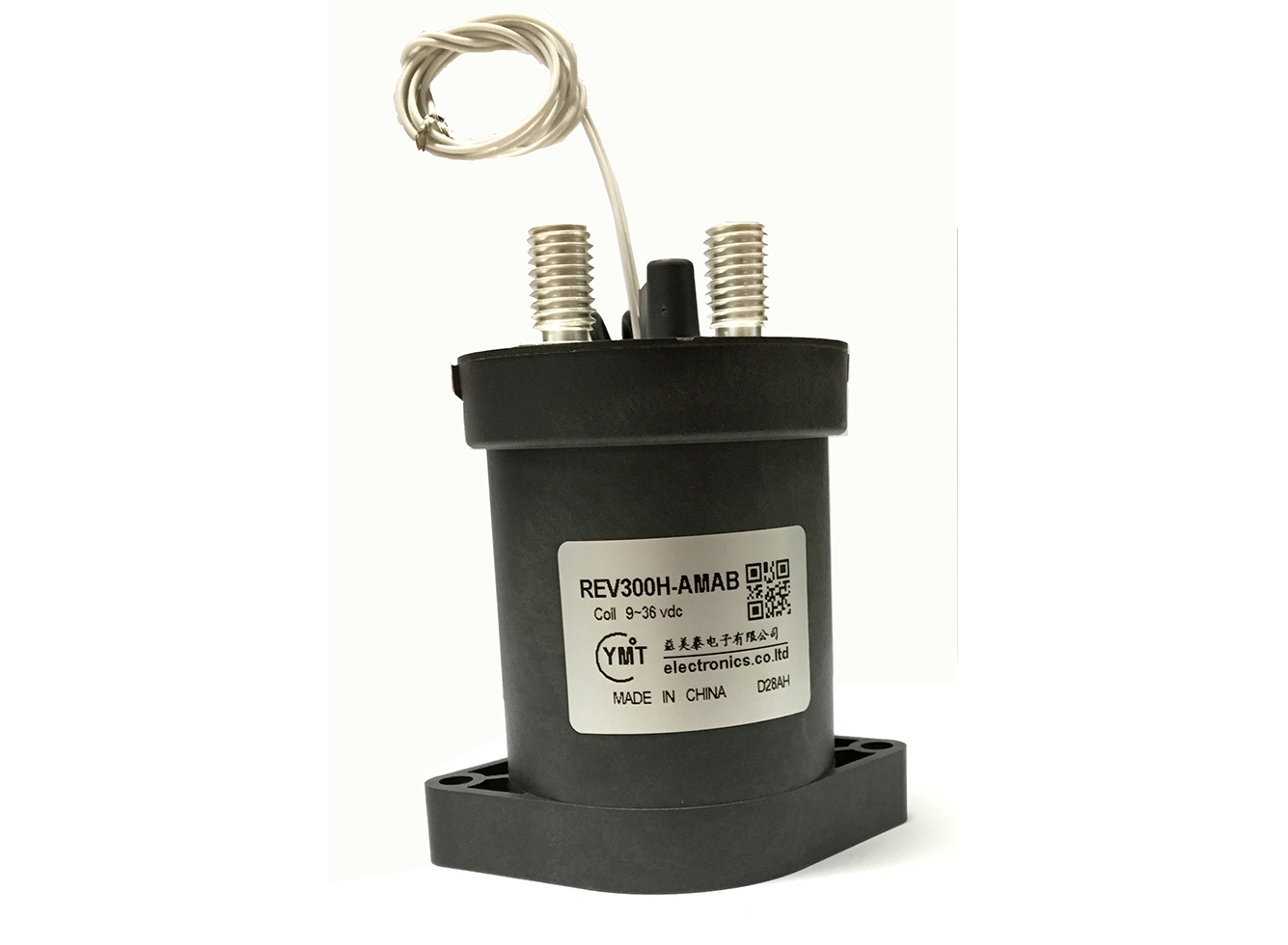

Name：高压直流接触器

Model：REV300H-AMAB

Description

PDF

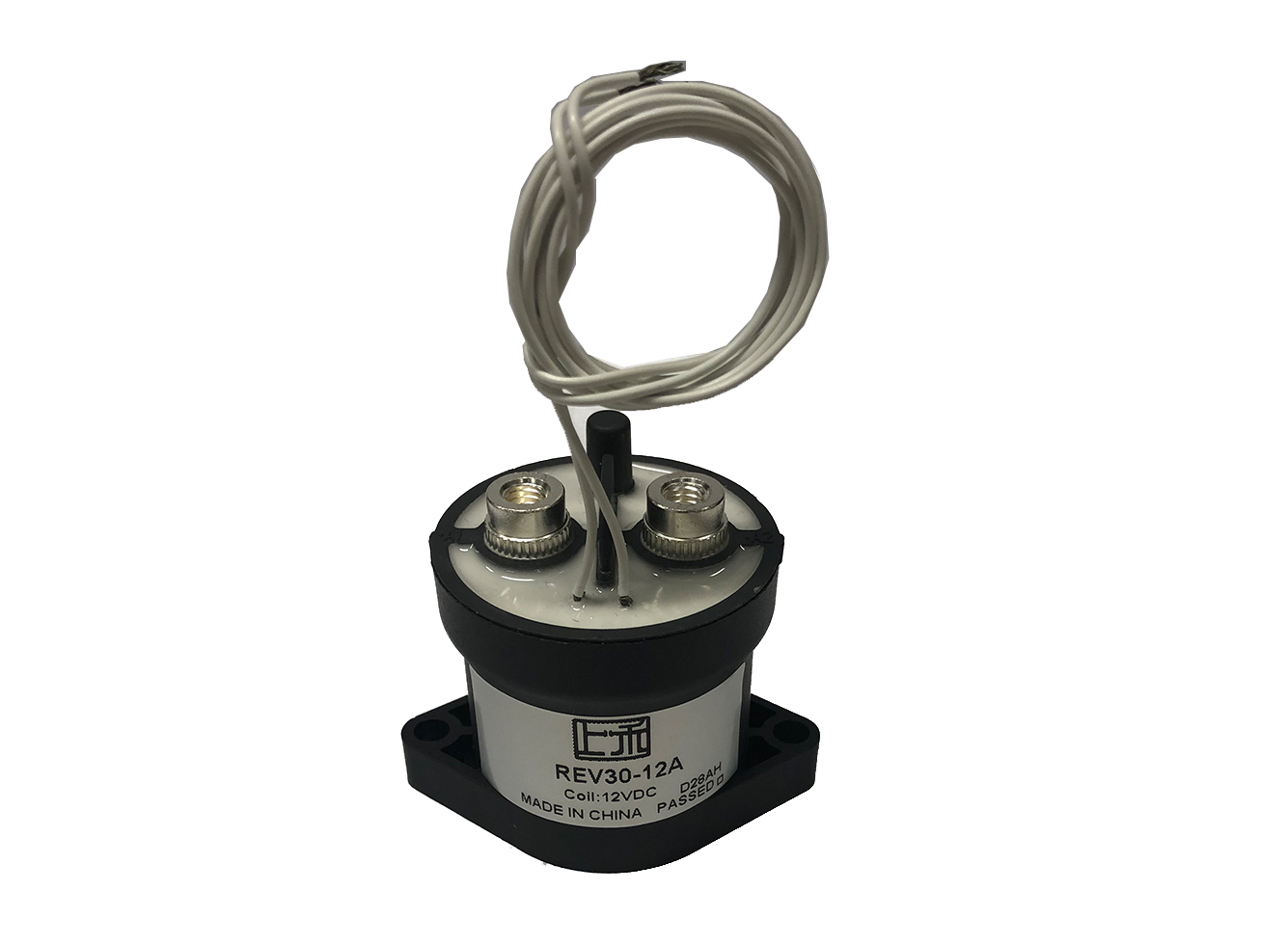

Name：HV DC contactor

Model：REV30-12A

Description

PDF

Name：Song Chuan Relay

Model：102

Description

• Miniature PCB automobile relay with reduced size
• Motor control for wiper, sunroof and lathe lifting
• 20A rated current, maximum switching current 30A
• High temperature resistance up to 125 ℃
• Suitable for infrared reflow processing (special specifications)
• Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives

PDF

Name：Flat transformer

Model：EIR25

Description

PDF

Name：Connector

Model：HVCOCF6ATR8SF750L0000

Description

• Market: Electric Vehicle
• Product Type: Power Connector
• IP Rating: IP44
• Rated Voltage: 1000V ( DC+/DC-), 250V (LI, N )
• Rated Current: 125A ( DC+ & DC- ：50MM2 Cable ), 32A (L1 & N: 6MM2 Cable)
• Mating Cycles >10,000 Cycles

PDF

Name：Current Sensor

Model：JCE20...200-ACS

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

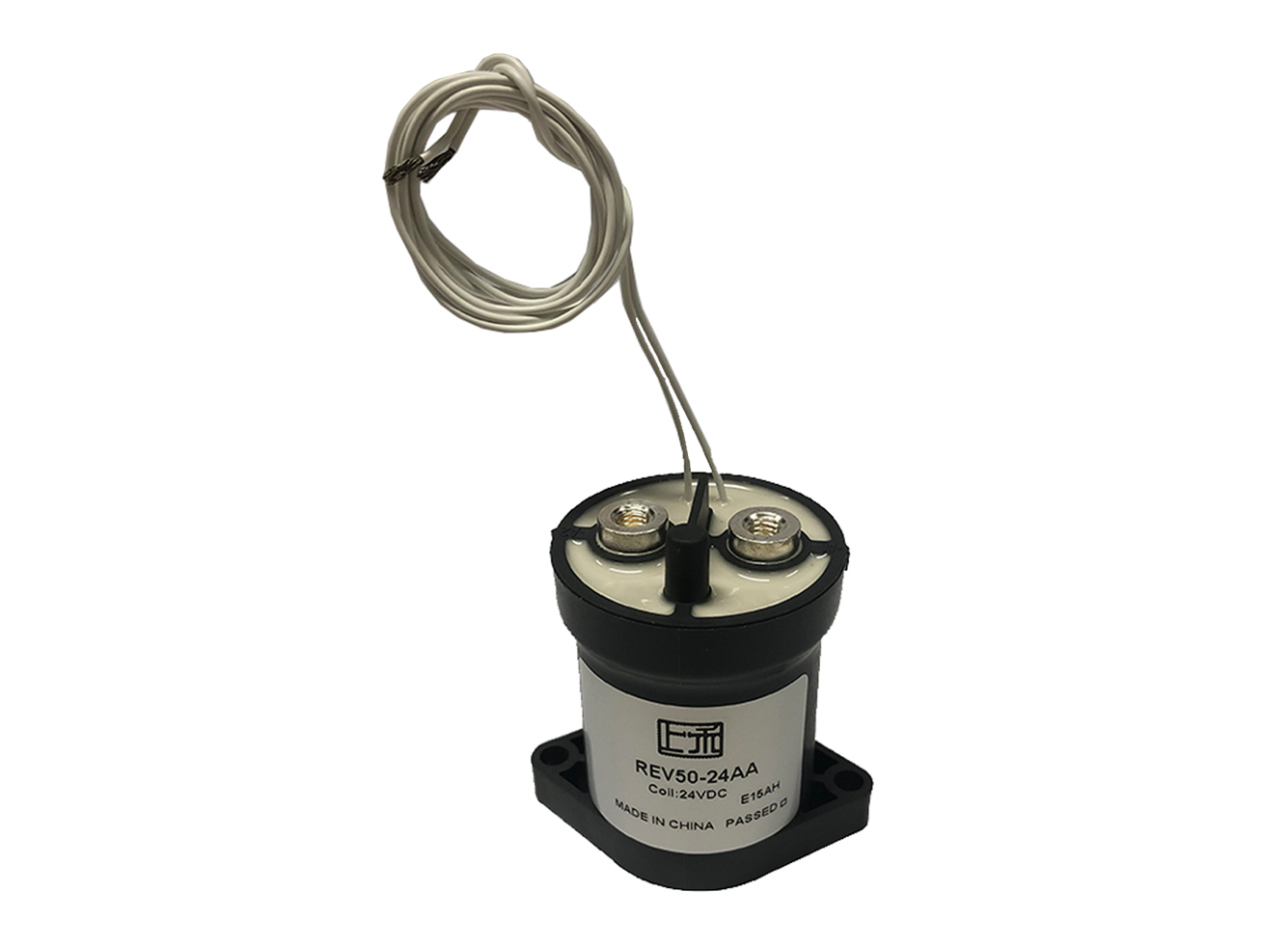

Name：HV DC contactor

Model：REV50-24AA

Description

PDF

Name：Song Chuan Relay

Model：103

Description

• Minimum thin PCB automobile relay
• High power 20A, maximum switching current 30A
• High temperature resistance up to 125 ℃
• Single relay and double relay are available
• Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives

PDF

Name：Flat transformer

Model：EIR30

Description

PDF
