Name：Flat transformer

Model：ECW41

Description

PDF

Name：Connector

Model：HVSL282 Series

Description

• BOX MOUNTED RECEPTACLE, 2+2 PIN, ALTERNATE POSITION A/B/C/D/E
• Product Type: Power Connector
• Market: Electric Vehicle
• Voltage: 1000V
• Wire Range: 2.5 To 4 Mm2 Shielded Wire
• Rated Current: 23 To 32A

PDF

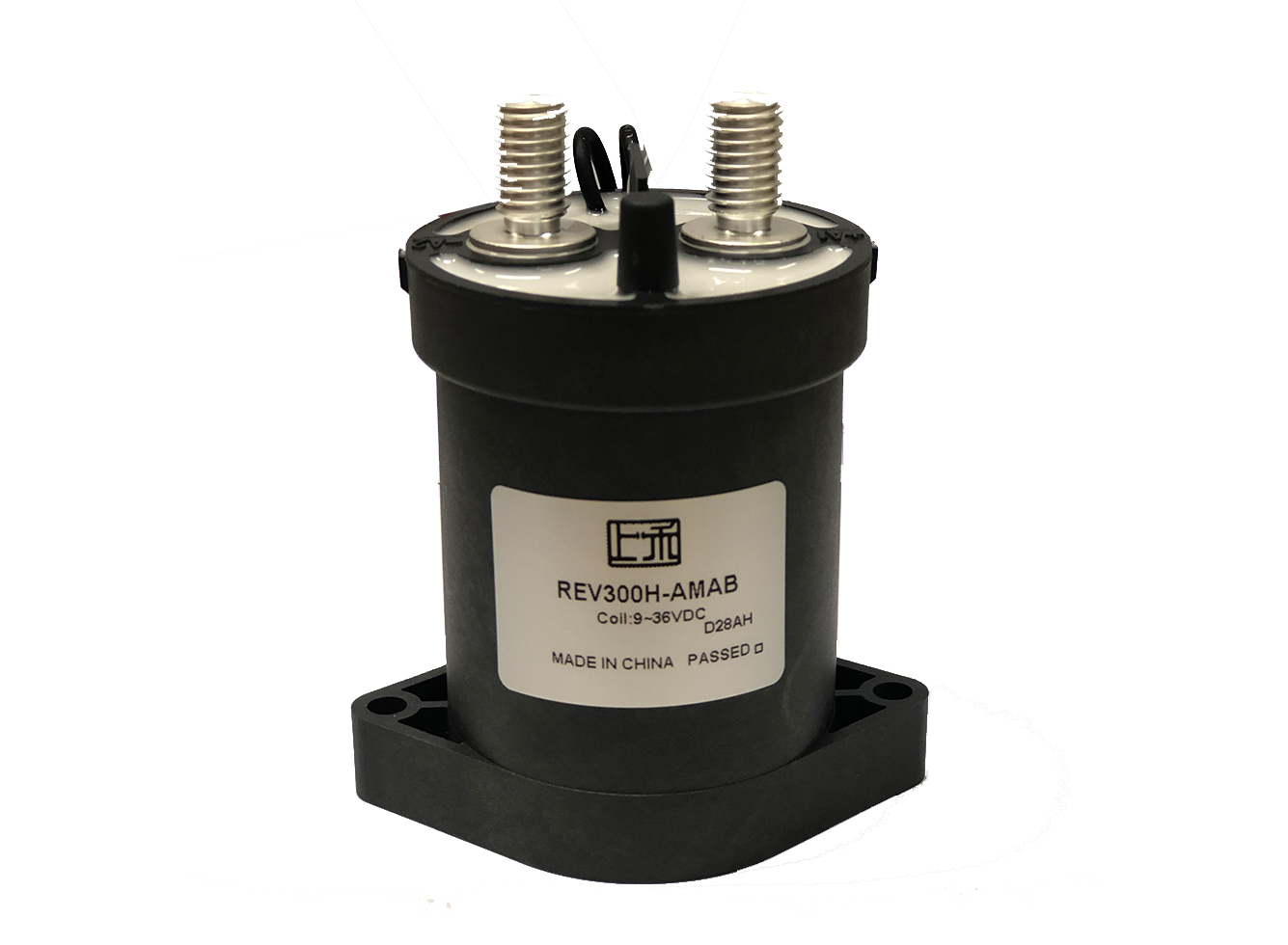

Name：HV DC contactor

Model：REV300H-AMAB

Description

PDF

Name：Current Sensor

Model：JCE10...50-XHP

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Flat transformer

Model：ECW51

Description

PDF

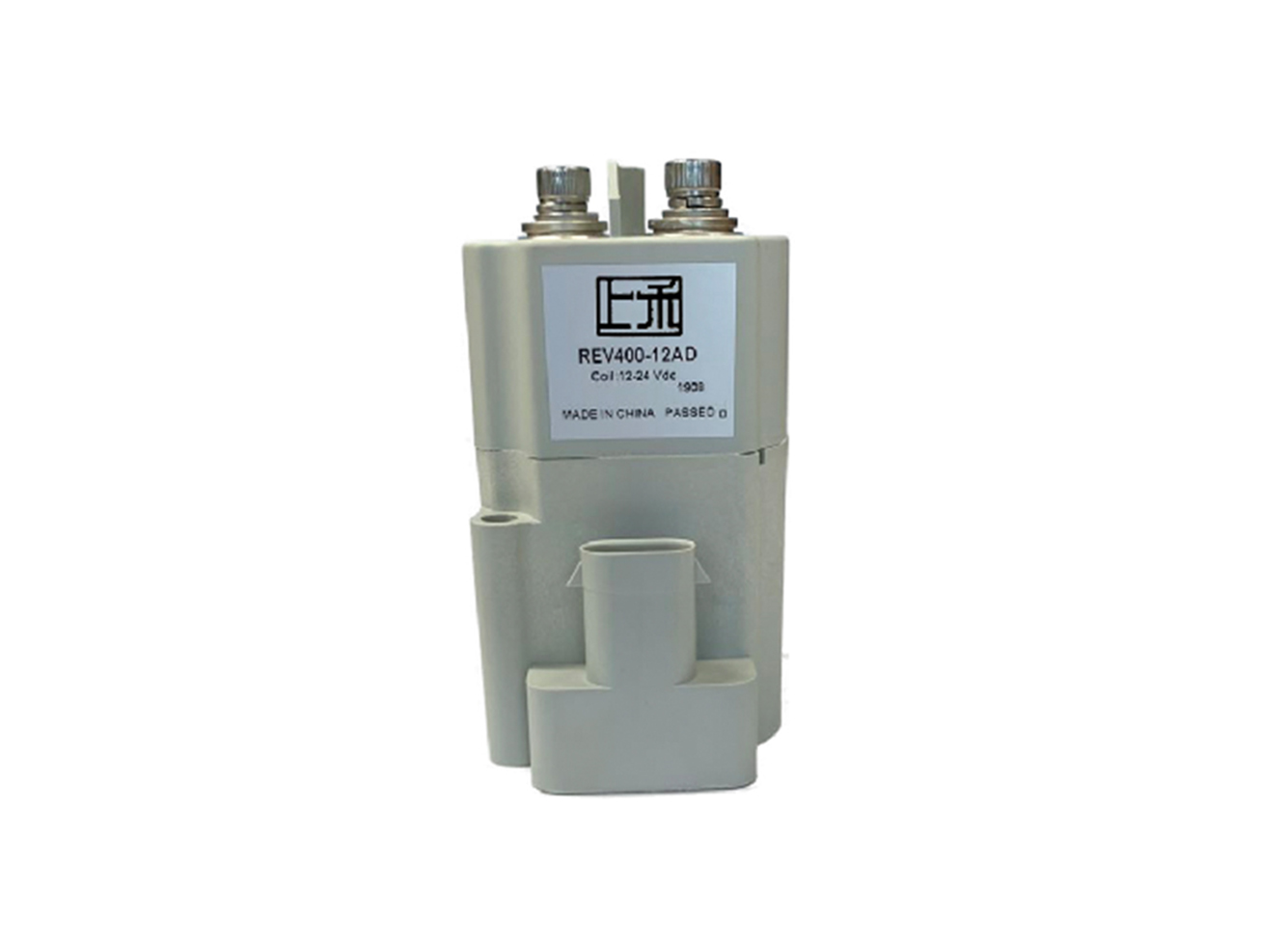

Name：HV DC contactor

Model：REV400-12AD

Description

PDF

Name：Song Chuan Relay

Model：301

Description

• Miniature 280 leading-out automobile relay
• The contact form includes a group of normally open type and a group of convertible type
• Normally open contact can reach 34A resistive load
• Normally closed contact can reach 20A resistive load, 100000 times, 23 ℃
• Working ambient temperature - 40 ℃~125 ℃
• Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives

PDF

Name：Connector

Model：HVSL362 Series

Description

• BOX MOUNTED RECEPTACLE, 2+2 PIN, ALTERNATE POSITION A/B/C/D
• Product Type: Power Connector
• Connection: Crimp
• Voltage: 1000V
• Wire Range: 6 To 16 Mm2 Shielded Wire
• Rated Current: 40 To 95A

PDF

Name：Current Sensor

Model：JCE5...50-XP

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Song Chuan Relay

Model：302

Description

• 20A small PCB power relay
• A set of normally open contacts with quick-connect leads
• The contact and coil can withstand 5KV withstand voltage and 10K pulse impulse voltage
• Typical application of electric heating control for high-power household appliances
• Comply with RoHS 2011/65/EU directive

PDF

Name：Flat transformer

Model：PQ2014

Description

PDF

Name：Connector

Model：HVSL364 Series

Description

• IN-LINE RECEPTACLE, 4+2 PIN, ALTERNATE POSITION A//B/C/D
• HVIL, 6MM2, INDIVIDUALLY SHIELDED WIRE
• Market: Electric Vehicle
• Voltage: 1000V
• Wire Range: 6mm2 Shielded Wire
• Rated Current: 46A Max

PDF
