Name：Song Chuan Relay

Model：207/207X

Description

• 20A/120VAC, 16A/240VAC, 35A/250VAC TV-8 high-power relay
• Provide anti-flux type, sealed type and sealed washable type
• Provide material of CTI 250 or products conforming to IEC 60335-1
• PV inverter, charging gun, 11kw charging gun, motor control, compressor control and household appliance application
• UL and VDE certification are provided, and comply with RoHS 2011/65/EU directive
• Halogen-free specifications are available, with the smallest volume and the largest density current in the world

PDF

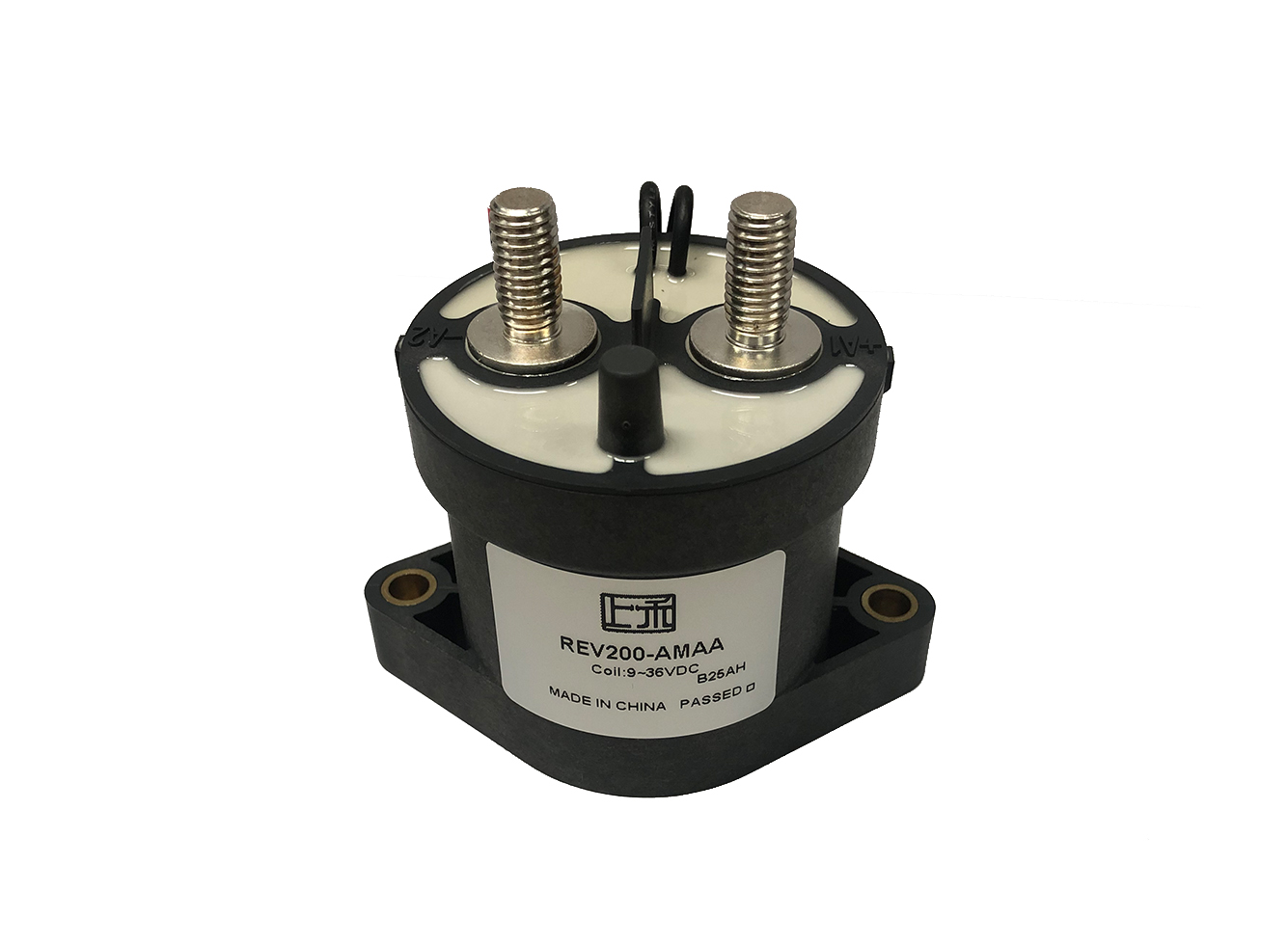

Name：HV DC contactor

Model：REV200-AMAA

Description

PDF

Name：Flat transformer

Model：PQI50

Description

PDF

Name：Connector

Model：HVCOMEBR6PS402RL5000CBT

Description

• HVCO AC PLUG, WITH CONTROL BOX, 16A
• Product Type: Power Connector
• Market: Electric Vehicle
• IP Rating: IP55
• Rated Voltage: 400V AC (L1, L2, L3, N & PE), 32V DC (PP & CP)
• Rated Current: 16A (L1, L2, L3, N & PE), 5A (PP & CP)

PDF

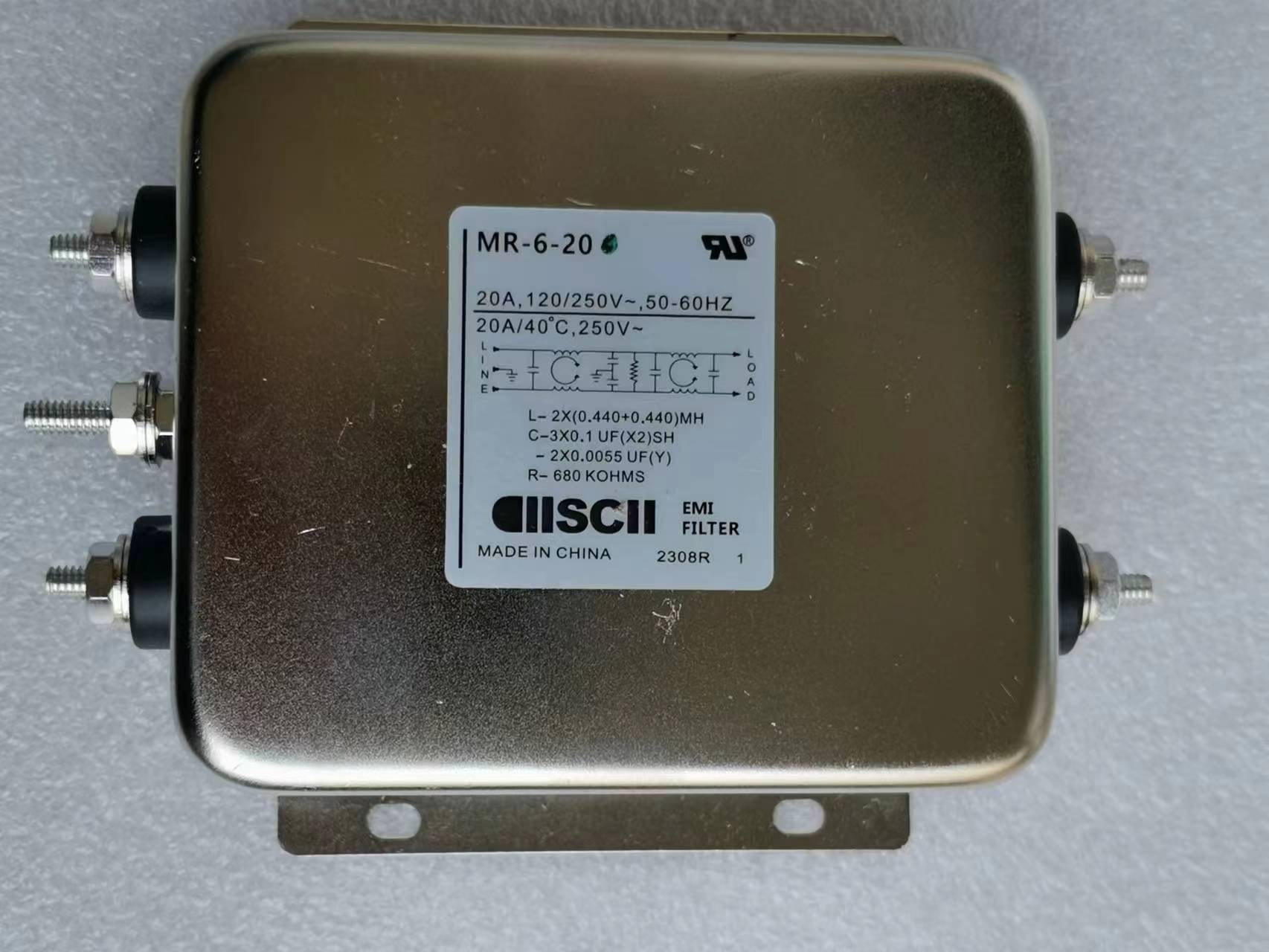

Name：SCII Power Filter

Model：MR-6-20

Description

• MR series SCII Power Filter
• Rated voltage (max):250VAC
• Rated current:1A/2A/3A/5A/10A/20A
• Operating frequency；50/60Hz

PDF

Name：Current Sensor

Model：JCE10...50-S(JCE10...50-SE)

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

Name：Current Sensor

Model：TLSR10...50P

Description

• Easy installation
• Small size, space saving
• No insertion loss
• Strong anti-interference ability

PDF

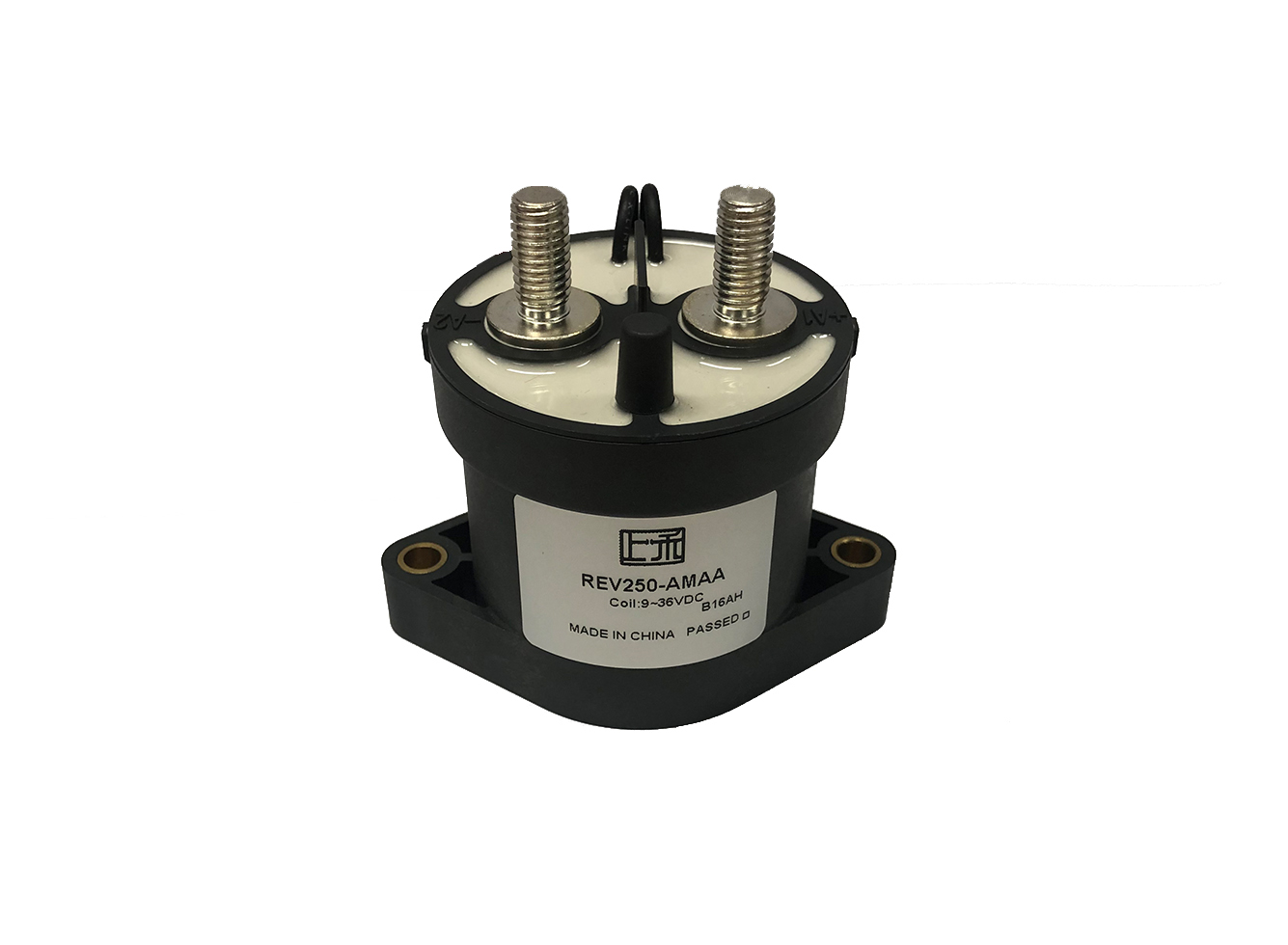

Name：HV DC contactor

Model：REV250-AMAA

Description

PDF

Name：Flat transformer

Model：PQI59.5

Description

PDF

Name：Song Chuan Relay

Model：210

Description

• 12A/14A/16A small PCB relay,
• Contact spacing 1.85mm, 2.1mm
• The holding voltage can be reduced to 45~60% (210) of the rated voltage of the coil
• The holding voltage can be reduced to 45~55% (210H) of the rated voltage of the coil
• High performance power, can be used in photovoltaic system
• Comply with European photovoltaic IEC 62109-1, RoHS 2011/65/EU

PDF

Name：Connector

Model：HVCOIMBSCR6PS506LXXXX

Description

• Product Type: Power Connector
• Market: Electric Vehicle
• IP Rating: IP55
• Voltage: 250V
• Rated Voltage: 250V AC (LI, N & PE), 30V DC (PP & CP)
• Rated Current: 32A Max (LI & N: 6MM2 Cable), 2A Max (PP & CP)

PDF

Name：Song Chuan Relay

Model：215H

Description

• Application products of the new generation of square sugar relay
• Provide NO terminal for selecting two-pin type
• Provide high insulation type
• Provide material of CTI 250 or products conforming to IEC 60335-1
• Comply with RoHS 2011/65/EU directive

PDF
